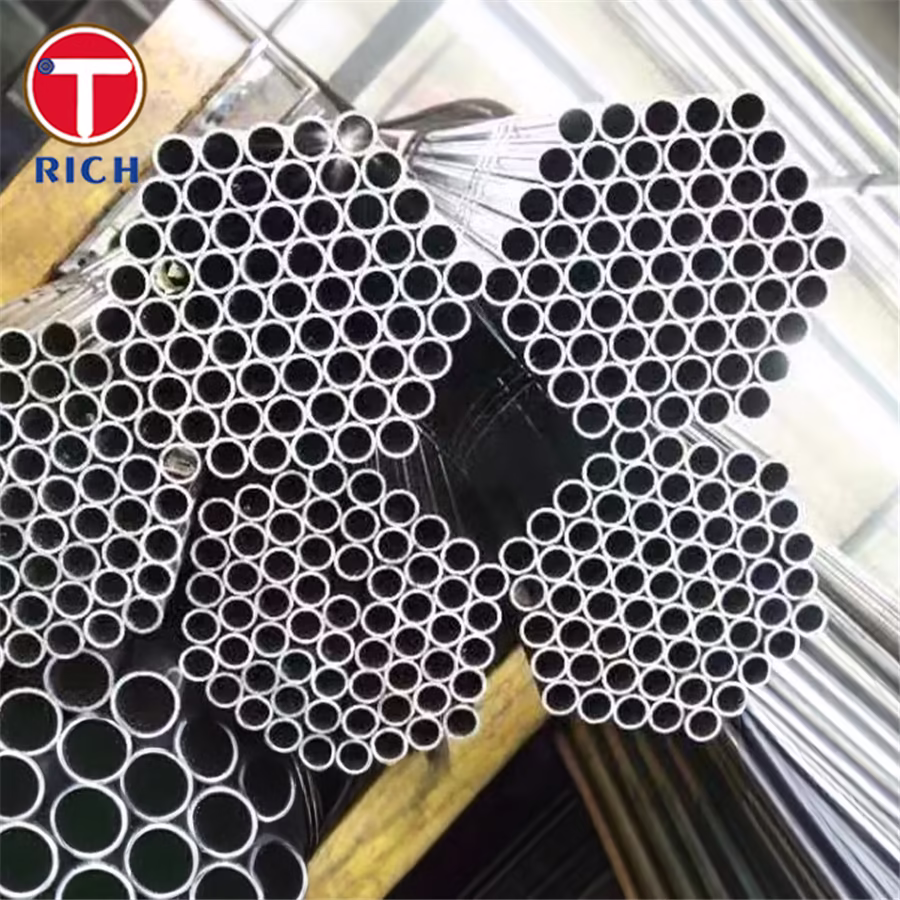

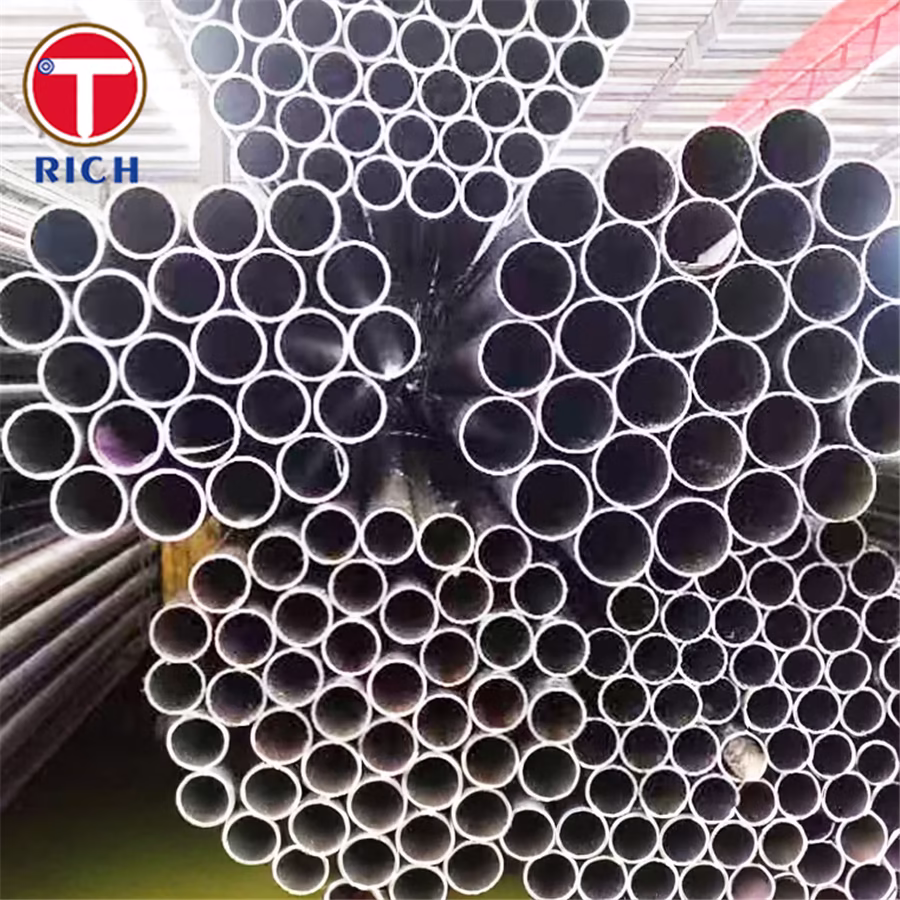

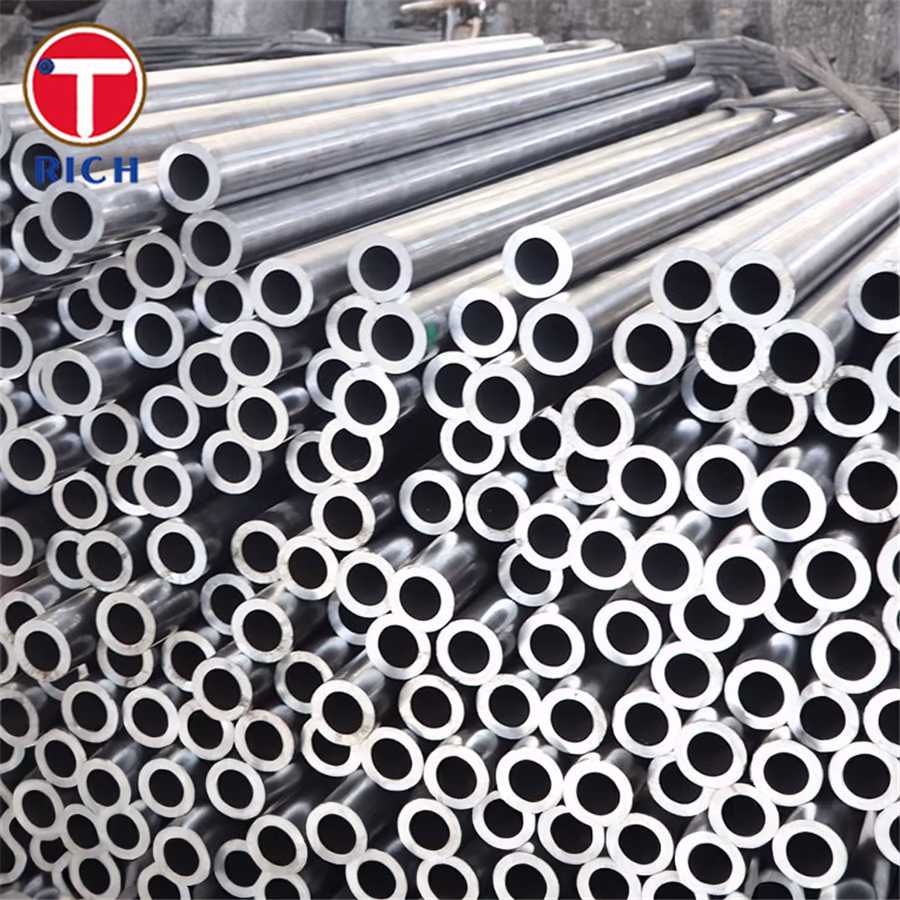

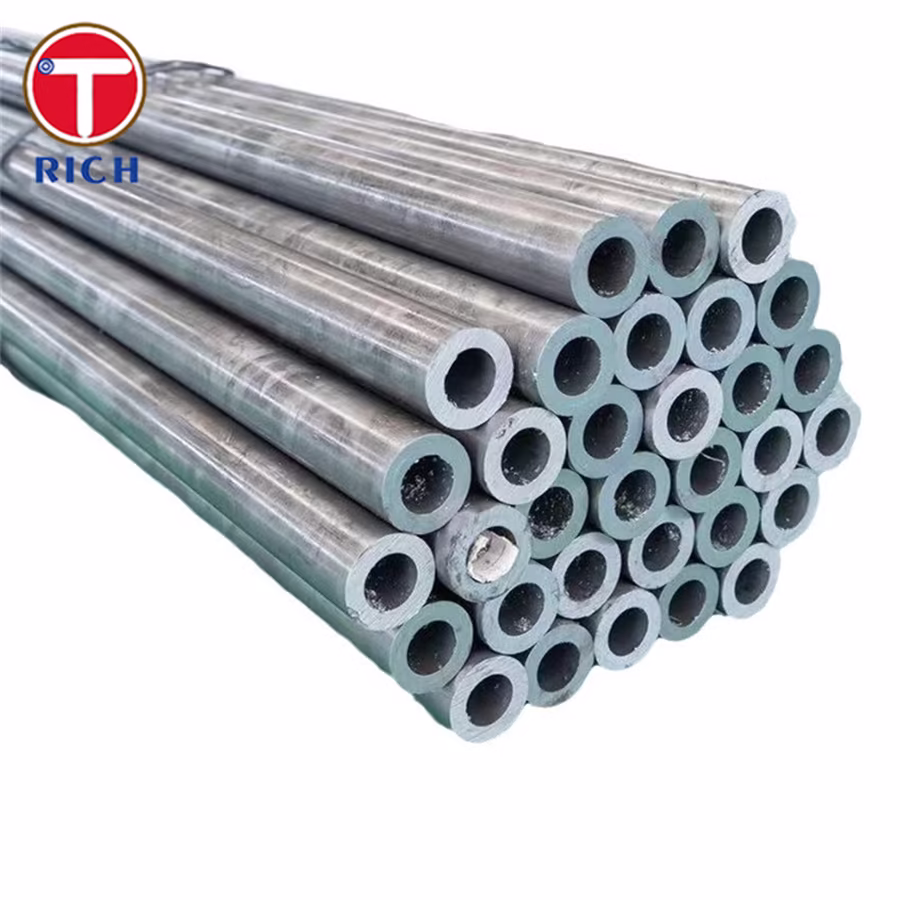

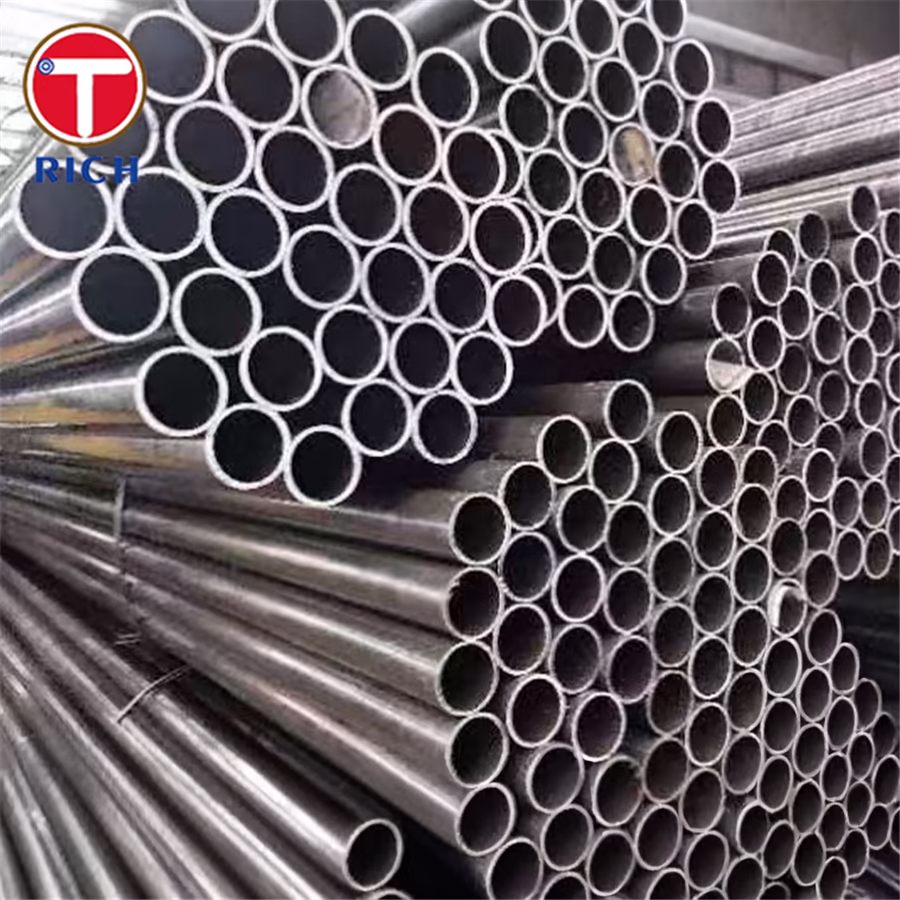

ASTM A530 Grade 35 50 60 70 80 Carbon Steel Seamless Pipe Overview
Material Type: Carbon Steel Seamless Pipe
Grades: Grade 35, Grade 50, Grade 60, Grade 70, Grade 80
Standard: ASTM A530
Material Composition
ASTM A530 pipes are carbon steel seamless pipes designed to meet specific mechanical properties and chemical composition standards. These pipes are commonly used in applications where high strength and durability are required.
| Grade | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation (%) |
|---|---|---|---|
| Grade 35 | 35-55 | 23 | 22 |
| Grade 50 | 50-70 | 30 | 21 |
| Grade 60 | 60-80 | 36 | 20 |
| Grade 70 | 70-90 | 45 | 18 |
| Grade 80 | 80-100 | 50 | 16 |
Mechanical Properties
The mechanical properties of the ASTM A530 carbon steel pipes are designed to ensure they can withstand high-pressure environments. These properties include tensile strength, yield strength, and elongation percentage, as seen in the table above.
| Grade | Hardness (HB) | Impact Energy (ft-lb) | Charpy V-Notch |
|---|---|---|---|
| Grade 35 | ≤ 170 | 40 | Good |
| Grade 50 | ≤ 170 | 40 | Excellent |
| Grade 60 | ≤ 170 | 45 | Excellent |
| Grade 70 | ≤ 170 | 50 | Excellent |
| Grade 80 | ≤ 170 | 55 | Excellent |
Applications
ASTM A530 seamless pipes are commonly used in industries requiring pipes with superior mechanical properties and resistance to wear, heat, and pressure. These include:
-
Power plants
-
Petrochemical refineries
-
Natural gas transport
-
High-temperature systems
-
Structural applications
Chemical Composition
The ASTM A530 specification ensures that the carbon steel material meets precise chemical composition standards. Below is an example of the chemical composition:
| Element | Grade 35 | Grade 50 | Grade 60 | Grade 70 | Grade 80 |
|---|---|---|---|---|---|
| Carbon (C) | ≤ 0.30% | ≤ 0.30% | ≤ 0.30% | ≤ 0.30% | ≤ 0.30% |
| Manganese (Mn) | 0.60-0.90% | 0.60-0.90% | 0.60-0.90% | 0.60-0.90% | 0.60-0.90% |
| Phosphorus (P) | ≤ 0.04% | ≤ 0.04% | ≤ 0.04% | ≤ 0.04% | ≤ 0.04% |
| Sulfur (S) | ≤ 0.05% | ≤ 0.05% | ≤ 0.05% | ≤ 0.05% | ≤ 0.05% |
Standards and Specifications
ASTM A530 is a versatile standard that addresses the requirements for seamless steel pipes and tubes. These pipes must meet the specific ASTM standards and are often used for critical applications that require strength and toughness.
The pipes must meet the following conditions:
-
Hydrostatic Testing: Every pipe must undergo testing to ensure that it is capable of handling high-pressure environments.
-
Dimensional Tolerances: The pipes must meet strict dimensional tolerances as specified in ASTM A530.
-
Surface Quality: The pipes should have a smooth, clean surface, free of any defects such as pitting or corrosion.
