Description

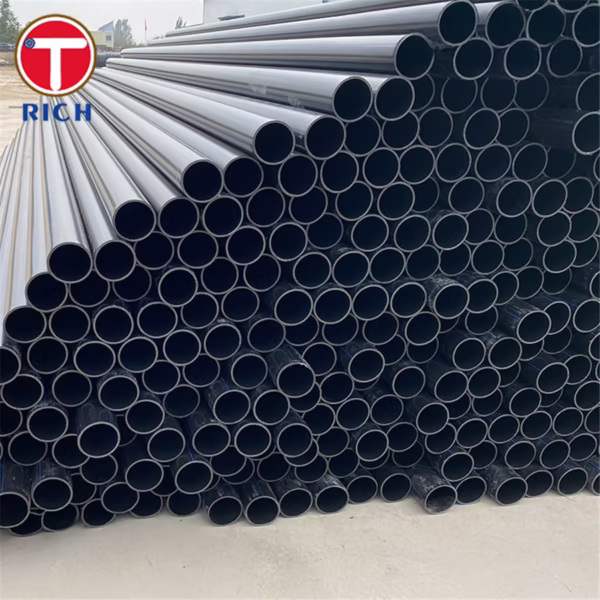

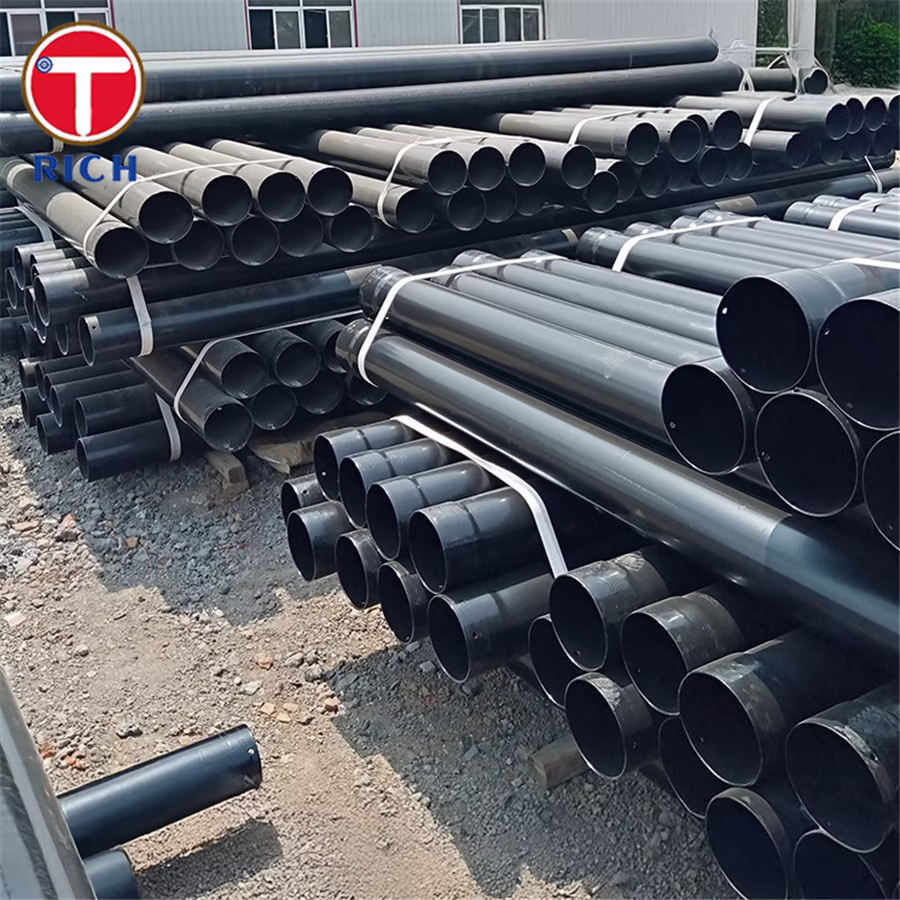

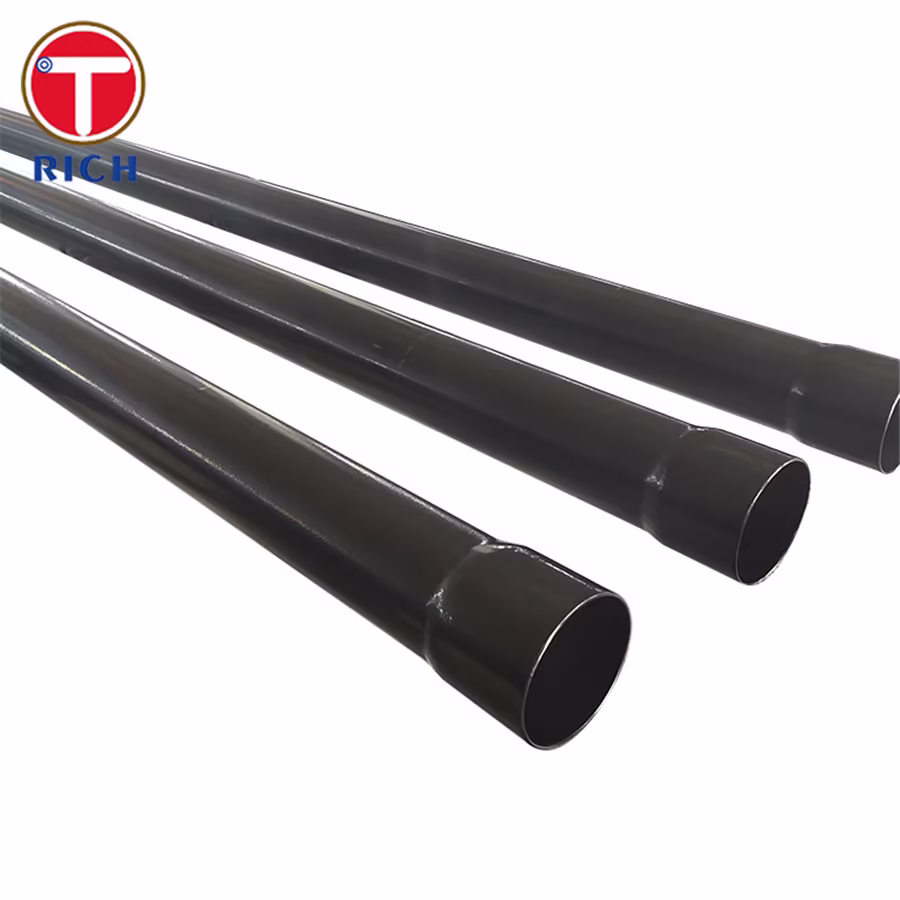

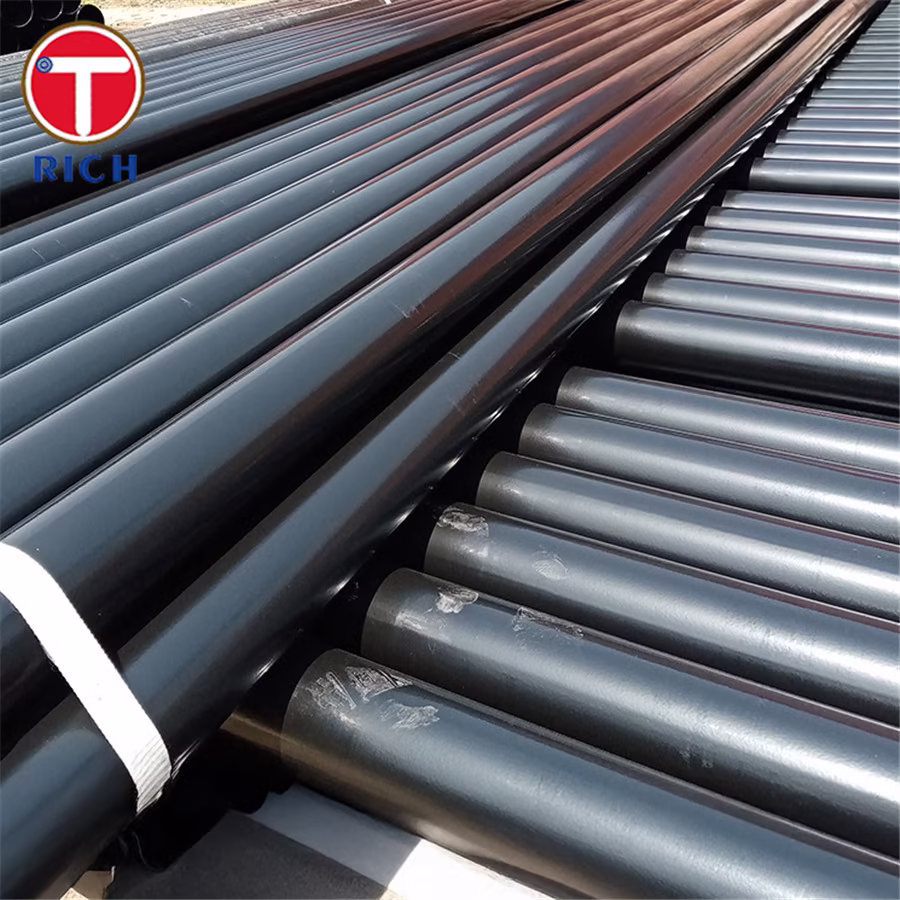

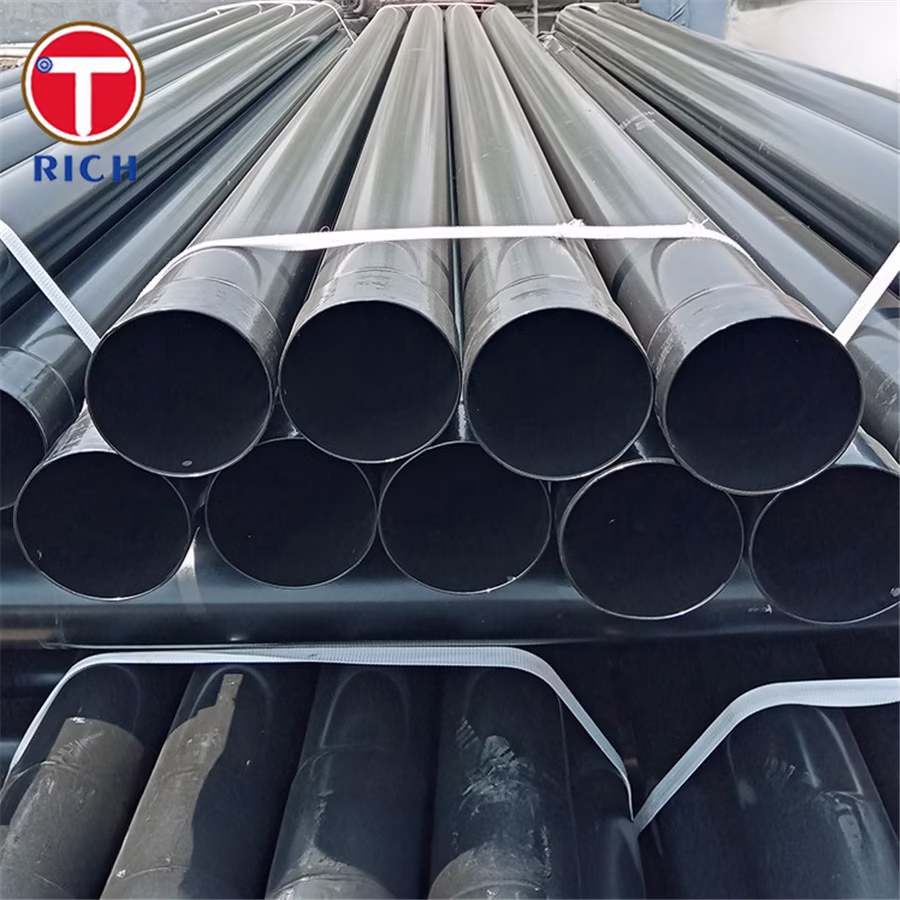

ASTM A53 Grade A Grade B Hot Dip Galvanized Pipe
Material
ASTM A53 is a standard specification for steel pipes, covering seamless and welded black and hot-dipped galvanized steel pipes. These pipes are primarily used for mechanical and pressure applications, as well as for ordinary uses in steam, water, gas, and air lines. The hot dip galvanized pipe is particularly valued for its enhanced corrosion resistance, making it suitable for outdoor and industrial environments.
Specification
ASTM A53 pipes are available in three types and two grades:
- Type E: Electric-resistance welded.
- Type F: Furnace-butt welded.
- Type S: Seamless.
The grades are:
- Grade A: Lower strength, more ductile.
- Grade B: Higher strength, less ductile.
The hot dip galvanized pipe is typically available in both Grade A and Grade B, offering flexibility depending on the required strength and ductility for specific applications.
Key Features
- Corrosion Resistance: The hot dip galvanized coating provides a protective layer against rust and corrosion.
- Versatility: Suitable for a wide range of applications including plumbing, construction, and industrial uses.
- Durability: Offers a long service life due to its robust construction and protective coating.
- Cost-Effective: Provides a balance of performance and cost, especially in environments where corrosion is a concern.
- Compliance: Meets ASTM A53 standards, ensuring reliability and quality.
Chemical Composition
Below is the chemical composition for ASTM A53 Grade A and Grade B hot dip galvanized pipe:
| Element | Grade A (%) | Grade B (%) |
|---|---|---|
| Carbon (C) | 0.25 max | 0.30 max |
| Manganese (Mn) | 0.95 max | 1.20 max |
| Phosphorus (P) | 0.05 max | 0.05 max |
| Sulfur (S) | 0.045 max | 0.045 max |
| Copper (Cu) | 0.40 max | 0.40 max |
Mechanical Properties
The mechanical properties of ASTM A53 Grade A and Grade B hot dip galvanized pipe are as follows:
| Property | Grade A | Grade B |
|---|---|---|
| Tensile Strength, min (psi) | 48,000 | 60,000 |
| Yield Strength, min (psi) | 30,000 | 35,000 |
| Elongation (%) | 20 | 23 |
Steel Grade
ASTM A53 steel pipes are available in two grades, A and B, with Grade B being the more commonly used due to its higher strength. The hot dip galvanized pipe can be produced in both grades, offering options based on the specific requirements of the application.
Application
The ASTM A53 is widely used in:
- Water and Gas Lines: Due to its corrosion resistance.
- Structural Applications: In construction for scaffolding and support structures.
- Industrial Piping Systems: For transporting steam, water, and other fluids.
- Fencing and Railings: Providing durability and resistance to environmental factors.
Possible Alternative Grades
While ASTM A53 is a popular choice, other grades and standards may be considered depending on specific requirements:
- ASTM A106: For high-temperature service.
- ASTM A500: For structural applications.
- ASTM A252: For piling applications.
