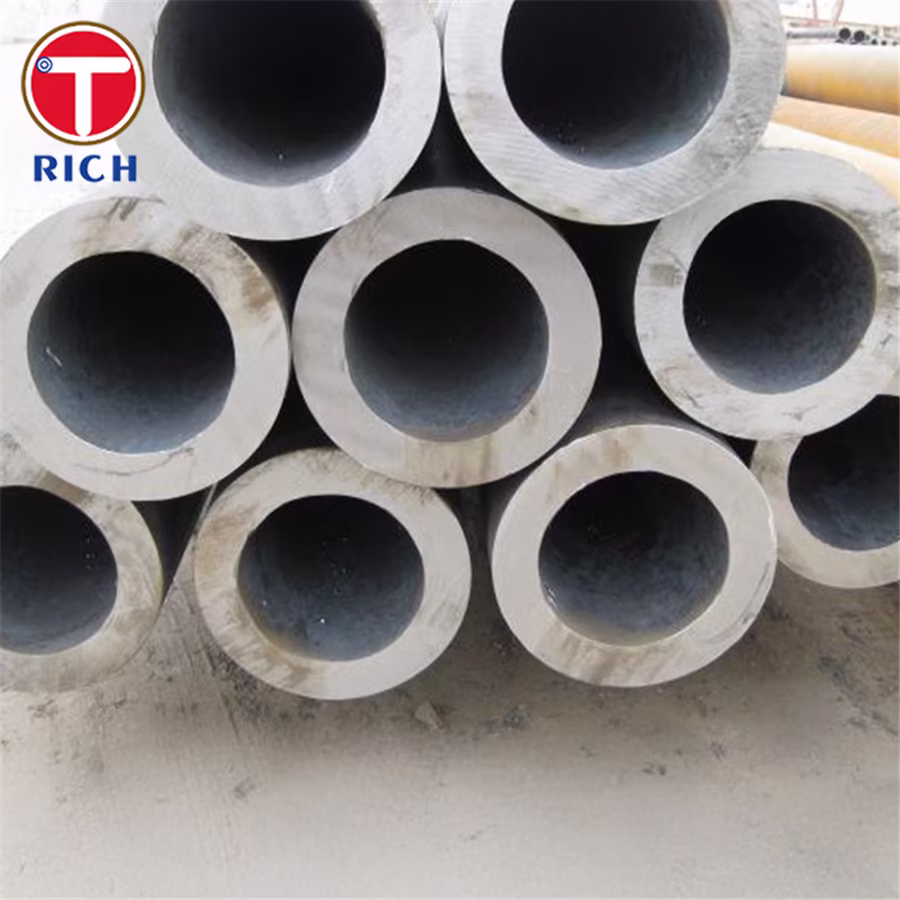

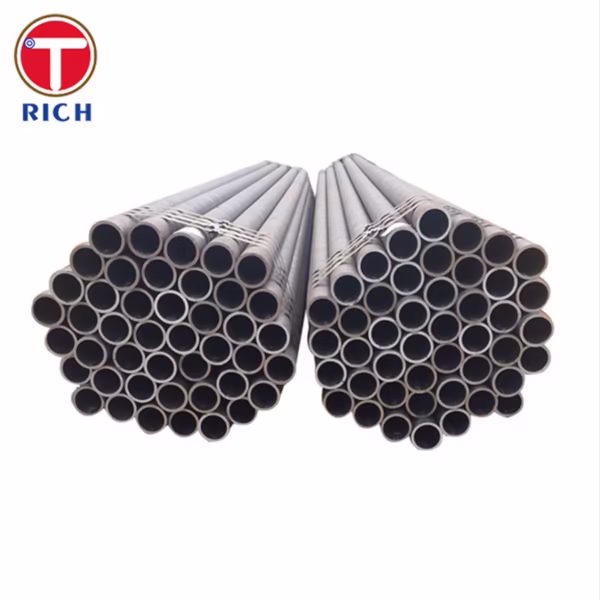

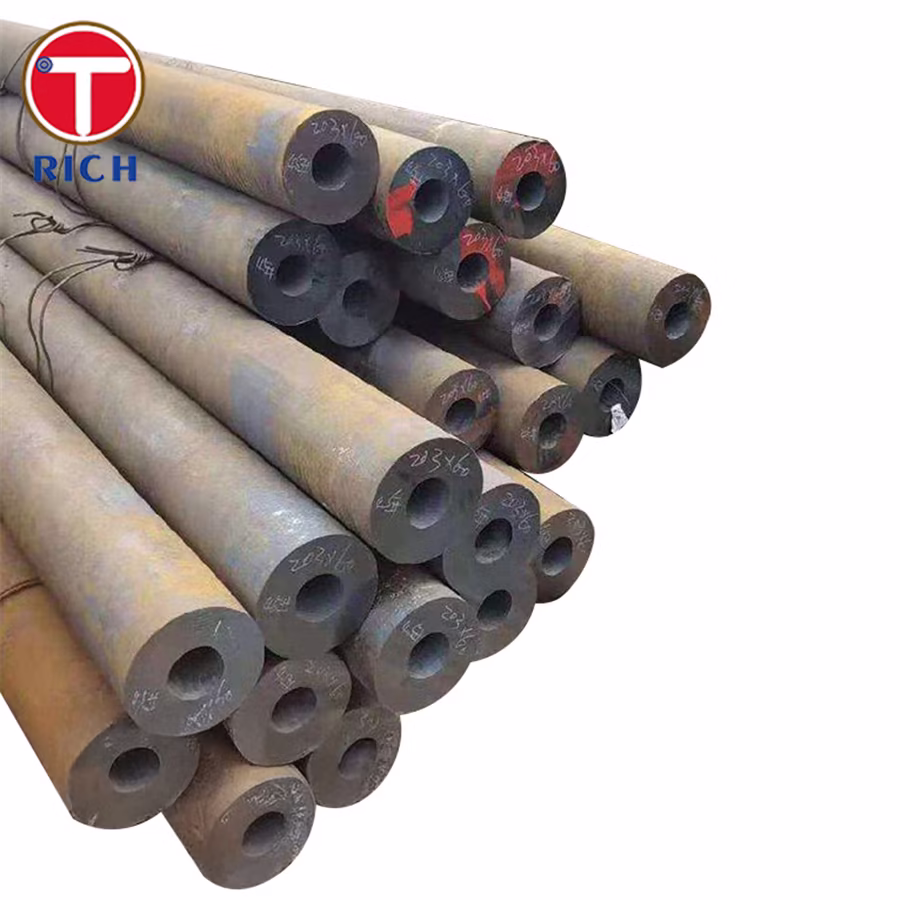

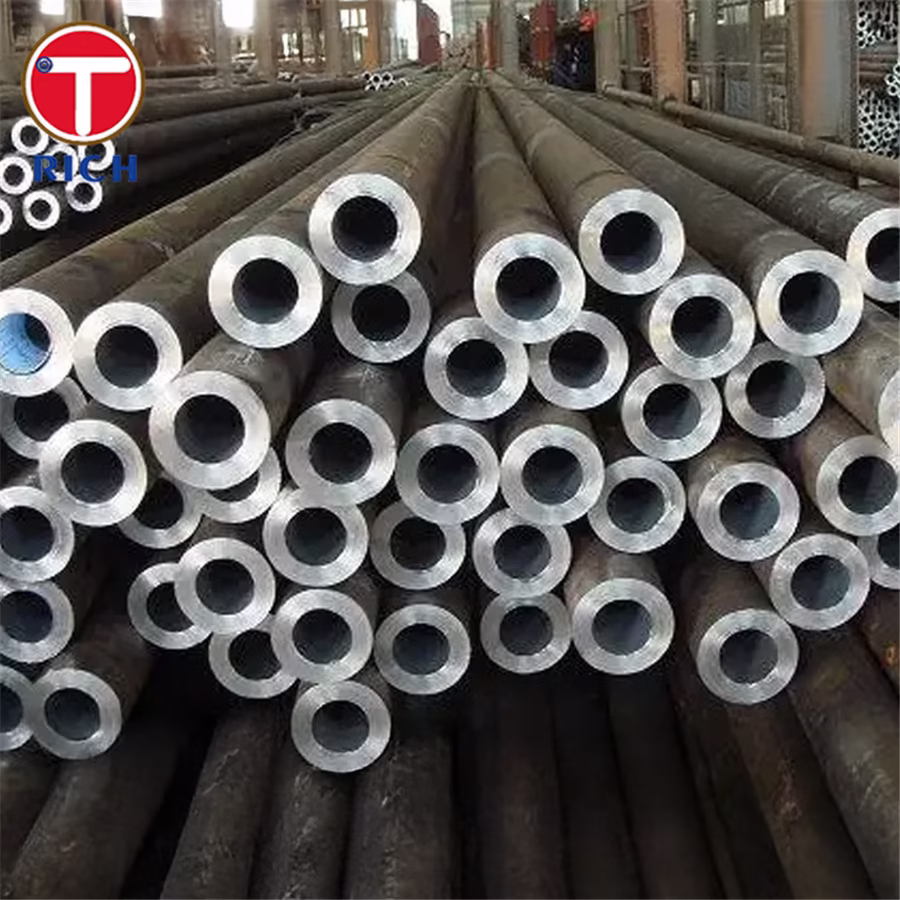

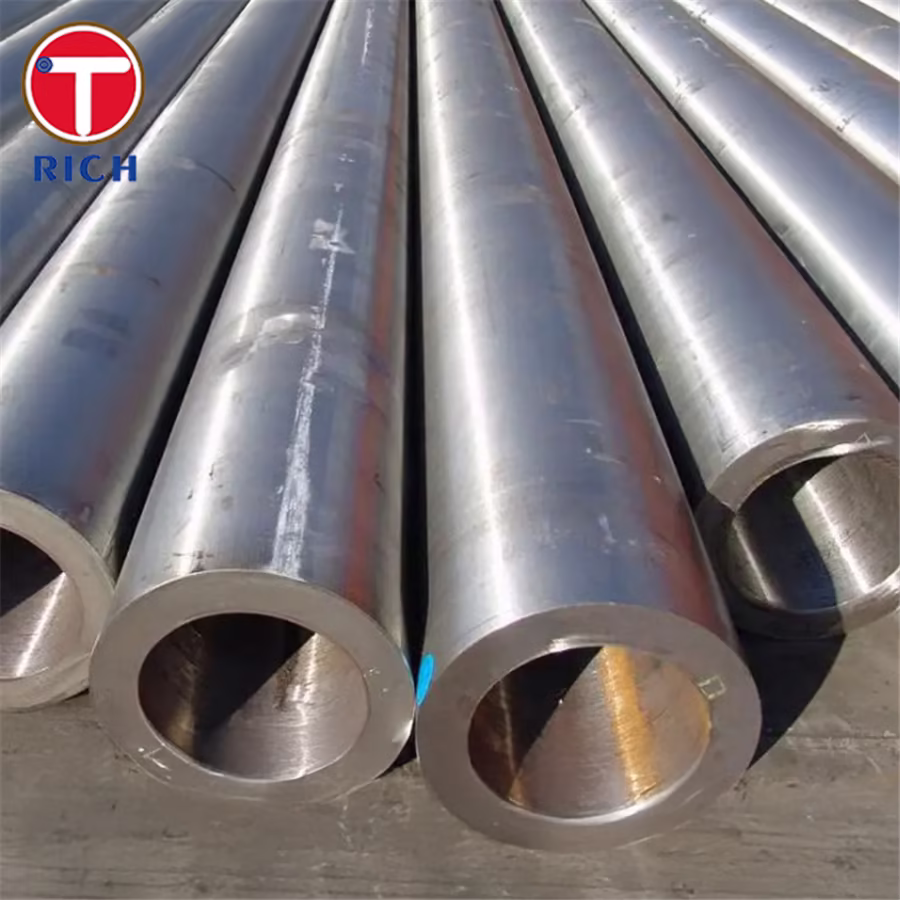

ASTM A333 Gr1, Gr3, Gr4, Gr6, Gr7 Low Temperature Carbon Steel Pipe
Material
ASTM A333 Low Temperature Carbon Steel Pipe is a standard specification for seamless and welded steel pipes designed for low-temperature service. These pipes are primarily used in environments where temperatures can drop significantly, necessitating materials that maintain their toughness and strength under such conditions. The grades covered under this specification include Gr1, Gr3, Gr4, Gr6, and Gr7, each offering distinct properties to suit various applications.
Specification
ASTM A333 Low Temperature Carbon Steel Pipe are manufactured to meet specific requirements for low-temperature service. The specification covers seamless and welded carbon and alloy steel pipes, ensuring they are suitable for use in low-temperature environments. The pipes are subjected to various tests, including impact tests, to ensure they meet the required toughness and strength standards.
Key Features
- Low-Temperature Resilience: Designed to perform in environments with temperatures as low as -45°C (-49°F).
- Versatility: Available in multiple grades to suit different applications and requirements.
- Durability: High resistance to wear and tear, making them suitable for demanding applications.
- Compliance: Meets international standards for low-temperature service, ensuring reliability and safety.
Chemical Composition
The chemical composition of ASTM A333 Low Temperature Carbon Steel Pipe varies slightly between grades. Below is a table summarizing the typical chemical composition for these grades:
| Element | Gr1 (%) | Gr3 (%) | Gr4 (%) | Gr6 (%) | Gr7 (%) |
|---|---|---|---|---|---|
| Carbon (C) | 0.30 | 0.19 | 0.12 | 0.30 | 0.19 |
| Manganese (Mn) | 0.40-1.06 | 0.31-0.64 | 0.50-1.05 | 0.29-1.06 | 0.90-1.40 |
| Phosphorus (P) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| Sulfur (S) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| Silicon (Si) | 0.18-0.37 | 0.10-0.35 | 0.10-0.35 | 0.10-0.35 | 0.10-0.35 |
Mechanical Properties
The mechanical properties of ASTM A333 Low Temperature Carbon Steel Pipe are crucial for their performance in low-temperature environments. The table below outlines the typical mechanical properties for these grades:
| Property | Gr1 | Gr3 | Gr4 | Gr6 | Gr7 |
|---|---|---|---|---|---|
| Tensile Strength (MPa) | 380 min | 450 min | 415 min | 415 min | 450 min |
| Yield Strength (MPa) | 205 min | 240 min | 240 min | 240 min | 240 min |
| Elongation (%) | 30 min | 22 min | 22 min | 22 min | 22 min |
| Impact Energy (J) | 27 min | 27 min | 27 min | 27 min | 27 min |
Steel Grade
The steel grades under ASTM A333 Low Temperature Carbon Steel Pipe are specifically designed to handle low-temperature environments. Each grade offers unique properties, making them suitable for different applications. The choice of grade depends on the specific requirements of the application, including temperature, pressure, and environmental conditions.
Application
ASTM A333 pipes are widely used in industries where low-temperature service is critical. Common applications include:
- Oil and Gas: Used in pipelines and processing facilities where low temperatures are encountered.
- Petrochemical: Suitable for transporting chemicals that require low-temperature conditions.
- Power Generation: Used in power plants where low-temperature service is necessary.
- Refrigeration: Ideal for systems that operate at low temperatures.
Possible Alternative Grades
While ASTM A333 is a popular choice for low-temperature applications, there are alternative grades that may be considered depending on specific requirements:
- ASTM A334: Another specification for low-temperature carbon and alloy steel tubes.
- ASTM A420: Covers pipe fittings of wrought carbon steel and alloy steel for low-temperature service.
- ASTM A350: Specification for carbon and low-alloy steel forgings, requiring notch toughness testing for piping components.
