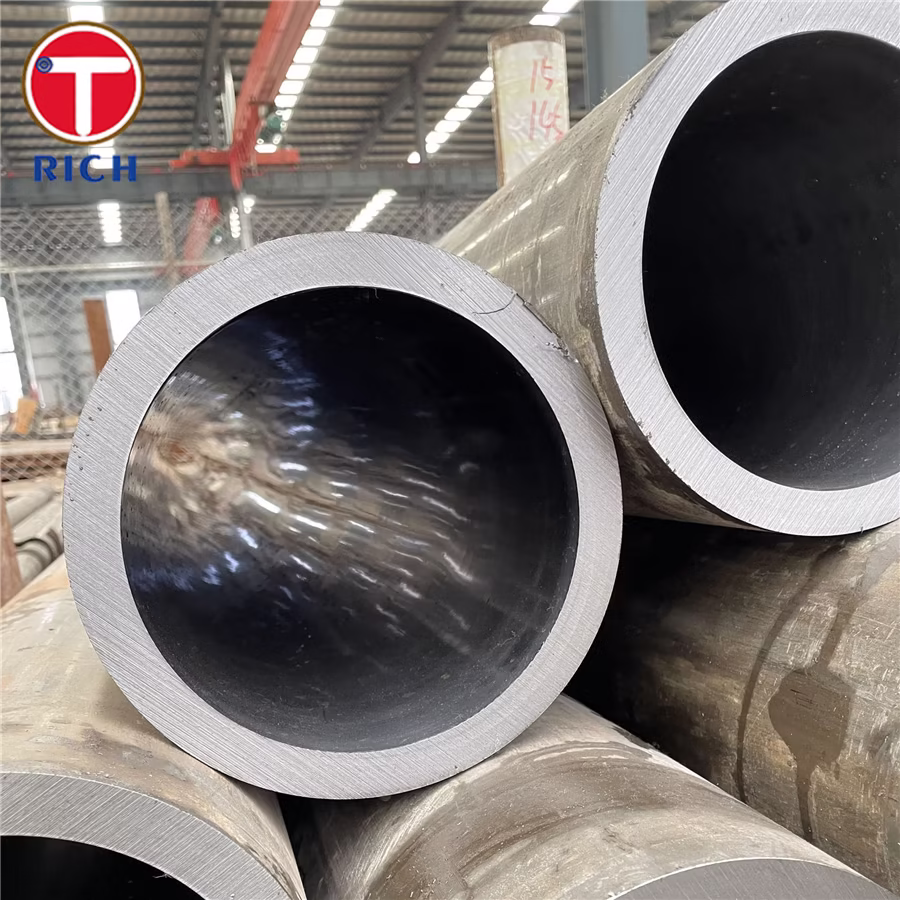

ASTM A209 T1, T1a, T1b Molybdenum Alloy Steel Tube for Boiler
Material Specification
ASTM A209 is a specification that covers seamless carbon-molybdenum alloy steel tubes for boilers, specifically designed for high-temperature service. The ASTM A209 Tube is known for its excellent strength and resistance to heat, making it ideal for use in power plants and industrial boilers.
Key Features
- High Temperature Resistance: These tube can withstand extreme temperatures, making it suitable for boiler applications.
- Enhanced Strength: The addition of molybdenum enhances the strength of the steel, providing durability and longevity.
- Corrosion Resistance: These tubes offer good resistance to corrosion, which is essential for boiler applications.
- Versatility: Available in various grades such as T1, T1a, and T1b, these tubes can be tailored to specific requirements.
- Compliance: Meets ASTM standards, ensuring reliability and quality.
Chemical Composition
The chemical composition of the Molybdenum Alloy Steel Tube is crucial for its performance. Below is a table detailing the composition for each grade:
| Element | T1 (%) | T1a (%) | T1b (%) |
|---|---|---|---|
| Carbon | 0.10-0.20 | 0.10-0.20 | 0.10-0.20 |
| Manganese | 0.30-0.80 | 0.30-0.80 | 0.30-0.80 |
| Phosphorus | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 |
| Sulfur | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 |
| Silicon | 0.10-0.50 | 0.10-0.50 | 0.10-0.50 |
| Molybdenum | 0.44-0.65 | 0.44-0.65 | 0.44-0.65 |
Mechanical Properties
The mechanical properties of the Molybdenum Alloy Steel Tube are essential for understanding its performance under stress. The table below outlines these properties:
| Property | T1 | T1a | T1b |
|---|---|---|---|
| Tensile Strength (MPa) | ≥ 415 | ≥ 415 | ≥ 415 |
| Yield Strength (MPa) | ≥ 205 | ≥ 205 | ≥ 205 |
| Elongation (%) | ≥ 30 | ≥ 30 | ≥ 30 |
Steel Grade
The ASTM A209 specification includes three primary grades: T1, T1a, and T1b. Each grade offers specific advantages, allowing engineers to select the most appropriate Molybdenum Alloy Steel Tube for their application.
Application
The Molybdenum Alloy Steel Tube is primarily used in:
- Boilers: Due to its high-temperature resistance and strength.
- Heat Exchangers: Where thermal efficiency and durability are critical.
- Power Plants: For steam generation and other high-pressure applications.
Possible Alternative Grades
While ASTM A209 T1, T1a, and T1b are popular choices, other grades may be considered depending on specific requirements:
- ASTM A213 T2: Offers similar properties with slight variations in composition.
- ASTM A335 P1: Another alternative with enhanced high-temperature performance.
- ASTM A210: Suitable for lower temperature applications but with similar mechanical properties.
