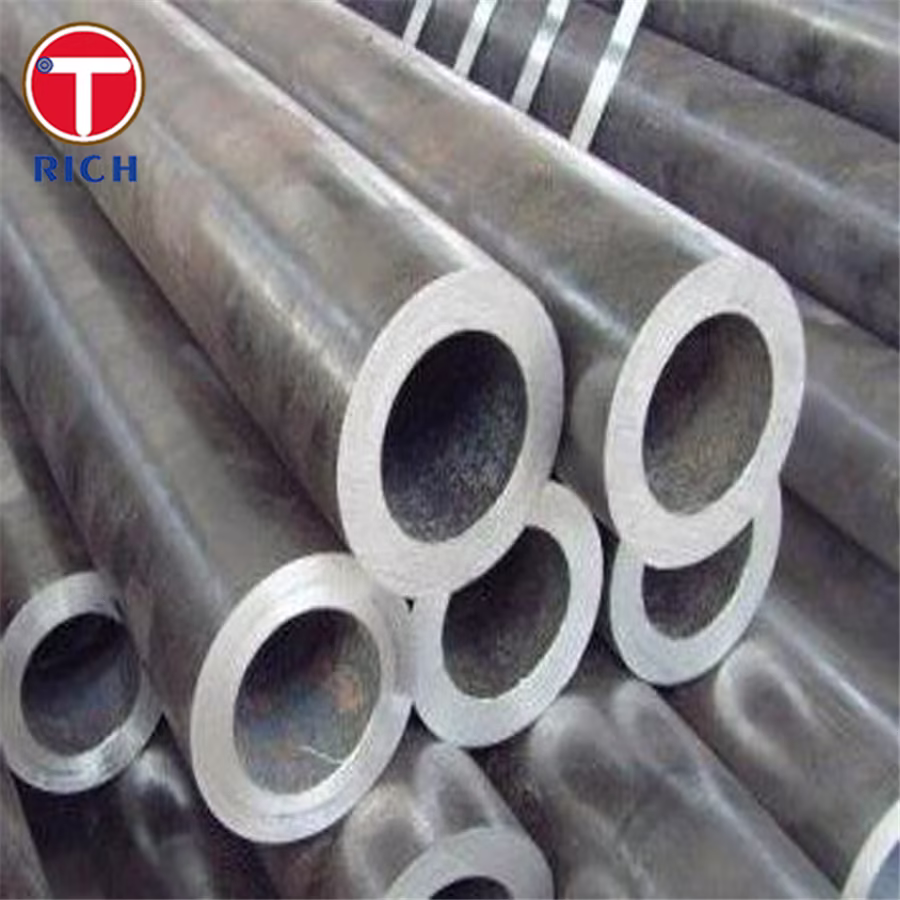

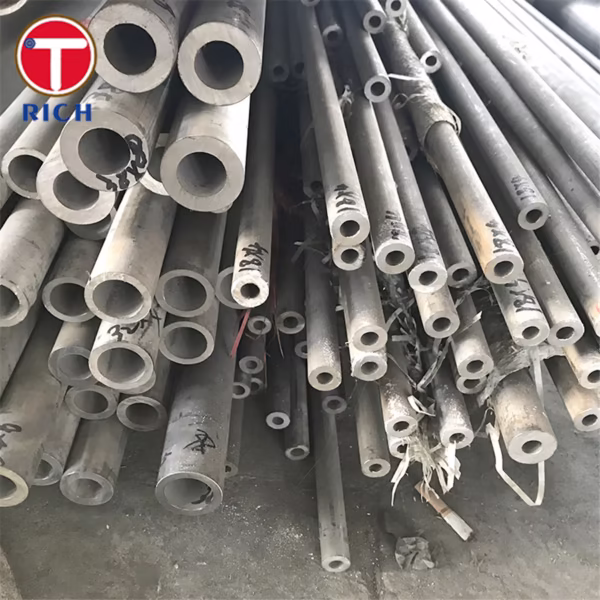

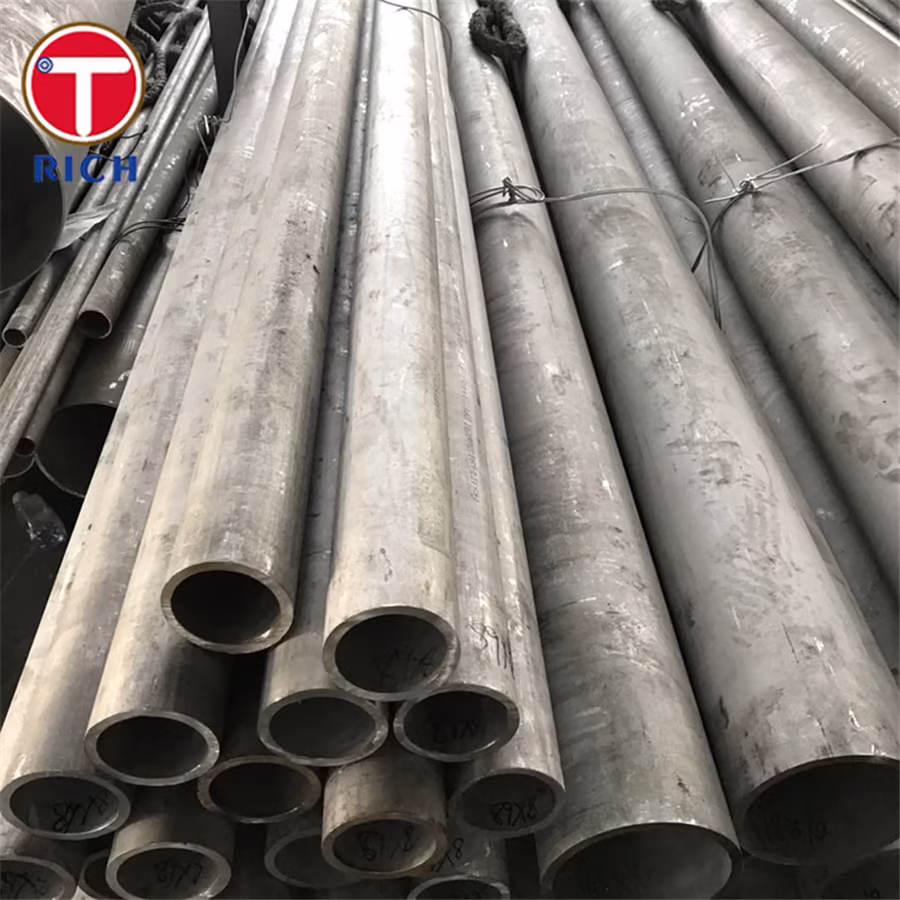

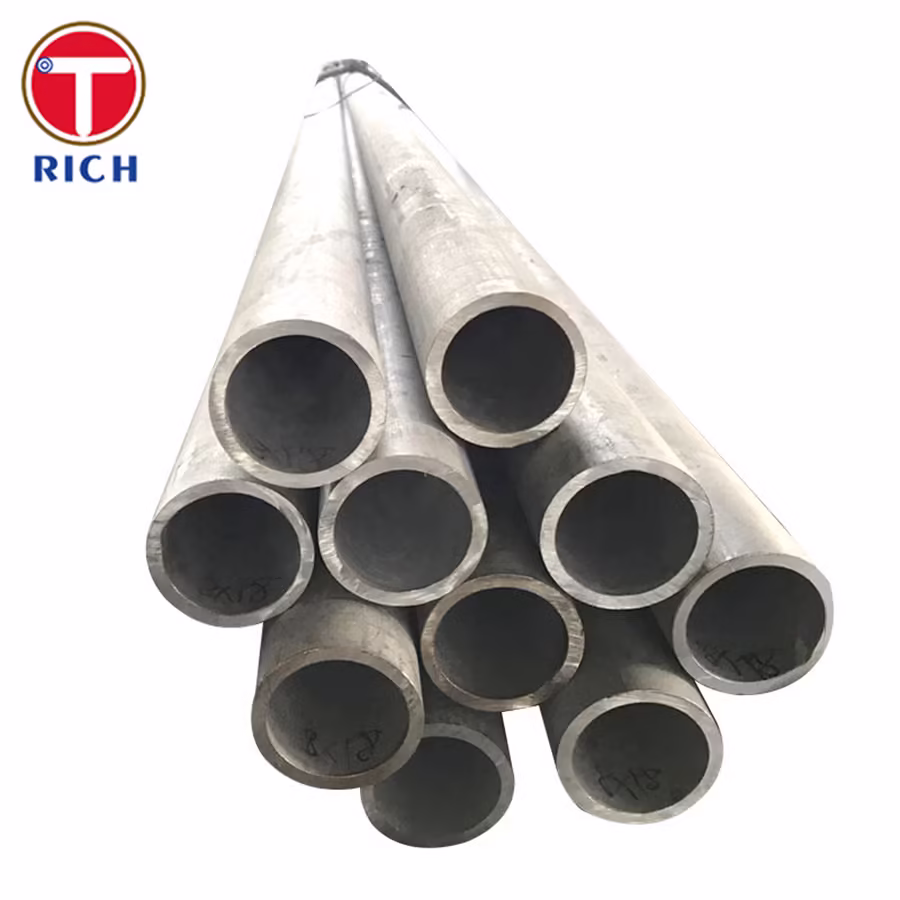

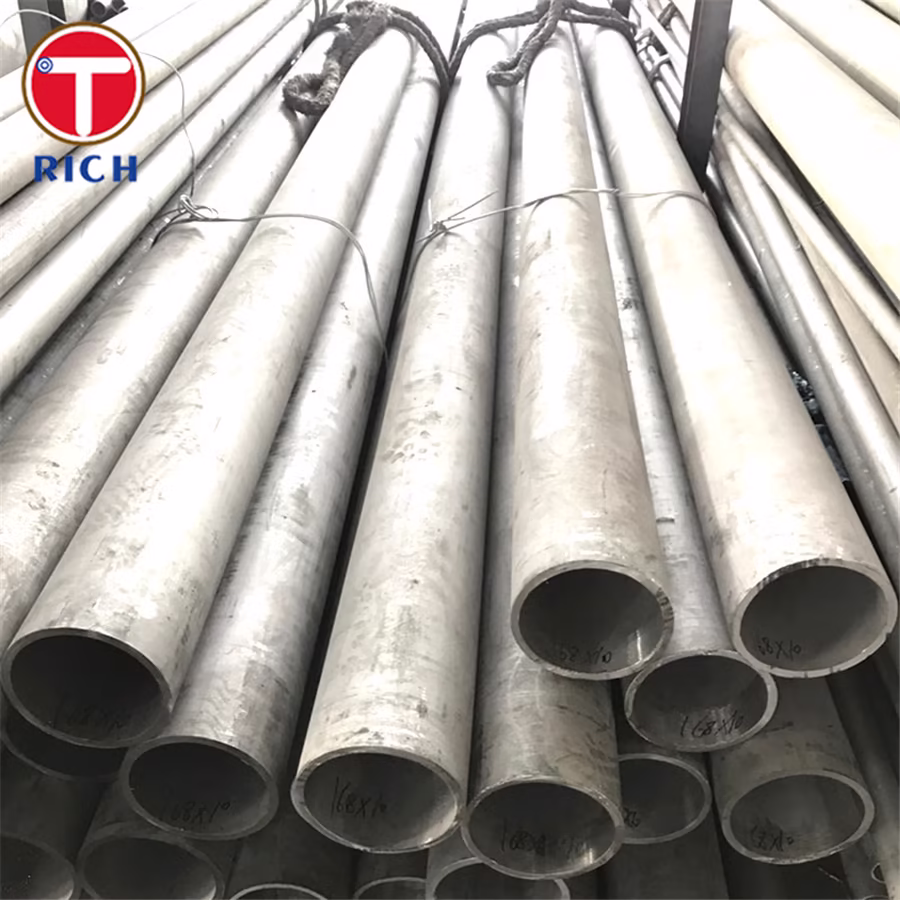

GB/T8162 Q345 Q390 Q420 Q460 Q500 Structural Seamless Steel Tube
Seamless metallic tubes are a cornerstone in introduction, engineering, and manufacturing. the numerous numerous grades, the GB/T8162 Structural Seamless steel Tube series is significantly seemed for its versatility and excessive-commonplace performance traits. this text delves into the specifics of the Q345, Q390, Q420, Q460, and Q500 structural seamless metal tube, protecting their fabric houses, specifications, capabilities, compositions, mechanical homes, applications, and options.
Material Specification
The GB/T8162 Structural Seamless Steel Tube modern day specifies Structural Seamless metallic Tube supposed typically for structural features. the ones tubes are substantially utilized in production, bridges, machine, and extra due to their immoderate power and flexibility.
Key Features
- Excessive Tensile Energy: those tubes provide extraordinary electricity, making sure durability and robustness in structural packages.
- Bendy Programs: exceptional for each heavy and slight-weight manufacturing tasks.
- Corrosion Resistance: dealt with to face up to rust and degradation over time.
- Sizable Diameter Variety: available in numerous sizes to healthful one in every of a kind undertaking requirements.
- Extra Suitable Ductility: capable of withstanding deformation with out cracking, for seismic regions.
Chemical Composition
GB/T8162 Structural Seamless Steel Tube here’s a desk supplying the regular chemical composition for those grades:
| Element | Q345 (%) | Q390 (%) | Q420 (%) | Q460 (%) | Q500 (%) |
|---|---|---|---|---|---|
| Carbon (C) | ≤ 0.20 | ≤ 0.20 | ≤ 0.22 | ≤ 0.22 | ≤ 0.22 |
| Silicon (Si) | ≤ 0.55 | ≤ 0.55 | ≤ 0.55 | ≤ 0.55 | ≤ 0.55 |
| Manganese (Mn) | 1.0-1.6 | 1.0-1.6 | 1.0-1.6 | 1.0-1.6 | 1.0-1.6 |
| Phosphorus (P) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | ≤ 0.30 | ≤ 0.30 | ≤ 0.30 | ≤ 0.30 | ≤ 0.30 |
Mechanical Properties
GB/T8162 Structural Seamless Steel Tube under is a desk highlighting the mechanical houses of each grade:
| Property | Q345 | Q390 | Q420 | Q460 | Q500 |
|---|---|---|---|---|---|
| Yield Strength (MPa) | ≥ 345 | ≥ 390 | ≥ 420 | ≥ 460 | ≥ 500 |
| Tensile Strength (MPa) | 470-630 | 510-680 | 550-780 | 580-830 | 620-920 |
| Elongation (%) | ≥ 20 | ≥ 19 | ≥ 18 | ≥ 17 | ≥ 16 |
Steel Grade
The GB/T8162 desired categorizes Structural Seamless Tube into first rate grades primarily based on their mechanical residences. The Q within the grades denotes the yield element, that is measured in megapascals (MPa).
Application
GB/T8162 structural seamless steel tube are implemented in:
- Structural engineering, which includes building frames and reinforcements.
- Bridge production making sure balance and durability.
- Mechanical systems requiring unique dimensions and immoderate strength.
- Offshore and onshore centers for oil extraction and delivery.
- Any software application requiring excessive-ordinary overall performance and dependable materials.
Possible Alternative Grades
For task-precise goals in which particular homes might be required, opportunity steel grades can be taken into consideration, such as:
- ASTM A106 Gr. B
- ASTM A53 Gr. B
- EN 10210 S355J2H
- API 5L Grade B
Every possibility offers super trends that may higher wholesome precise engineering requirements.
In quit, the GB/T8162 Q345, Q390, Q420, Q460, and Q500 structural seamless steel tube provide robust answers for a huge huge kind of production and mechanical packages. selecting the proper grade guarantees compliance with engineering necessities, balance in software, and most beneficial everyday overall performance over the lifespan of the project.
