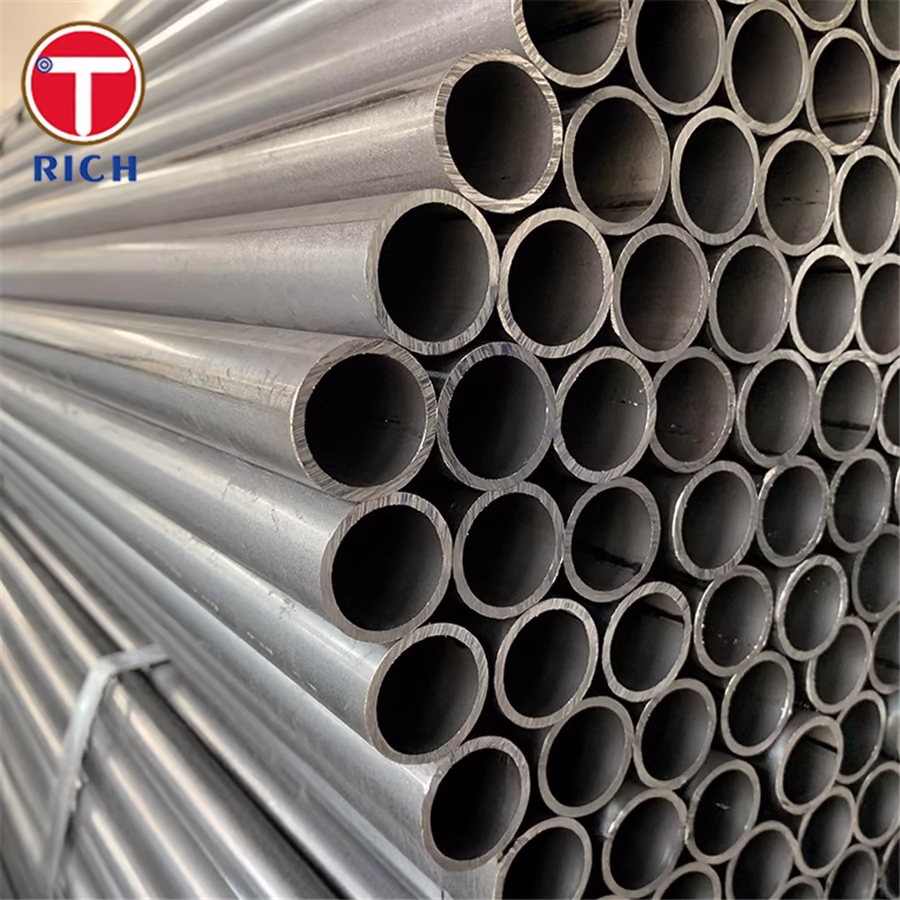

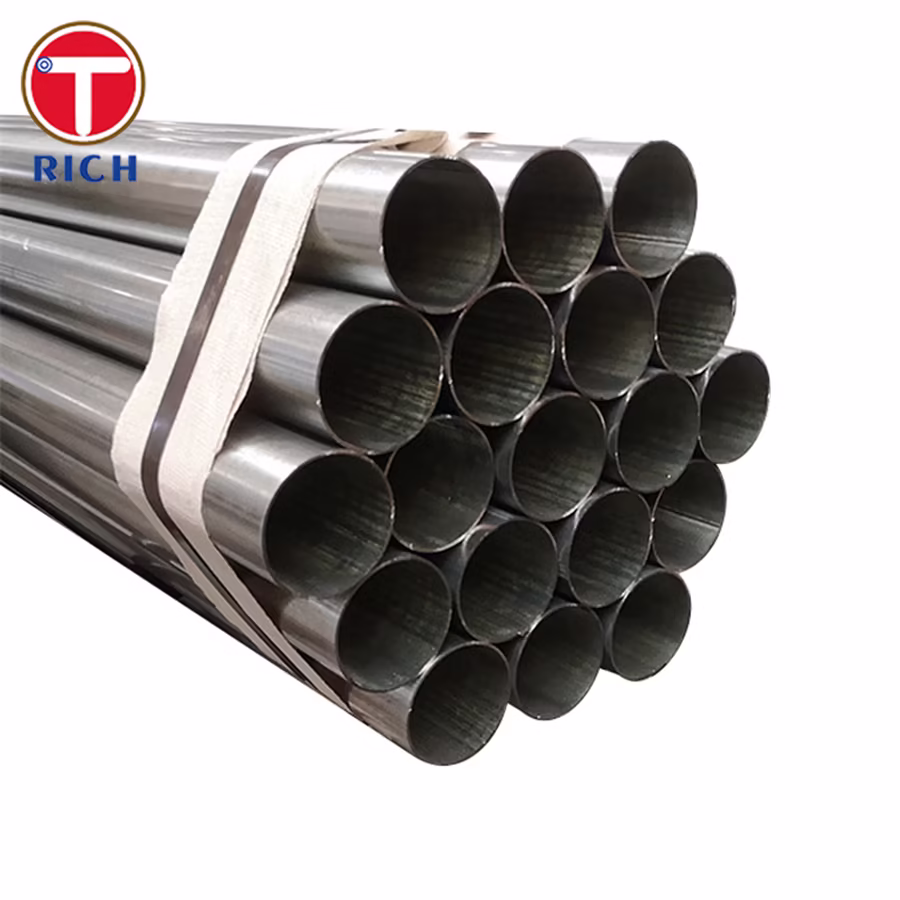

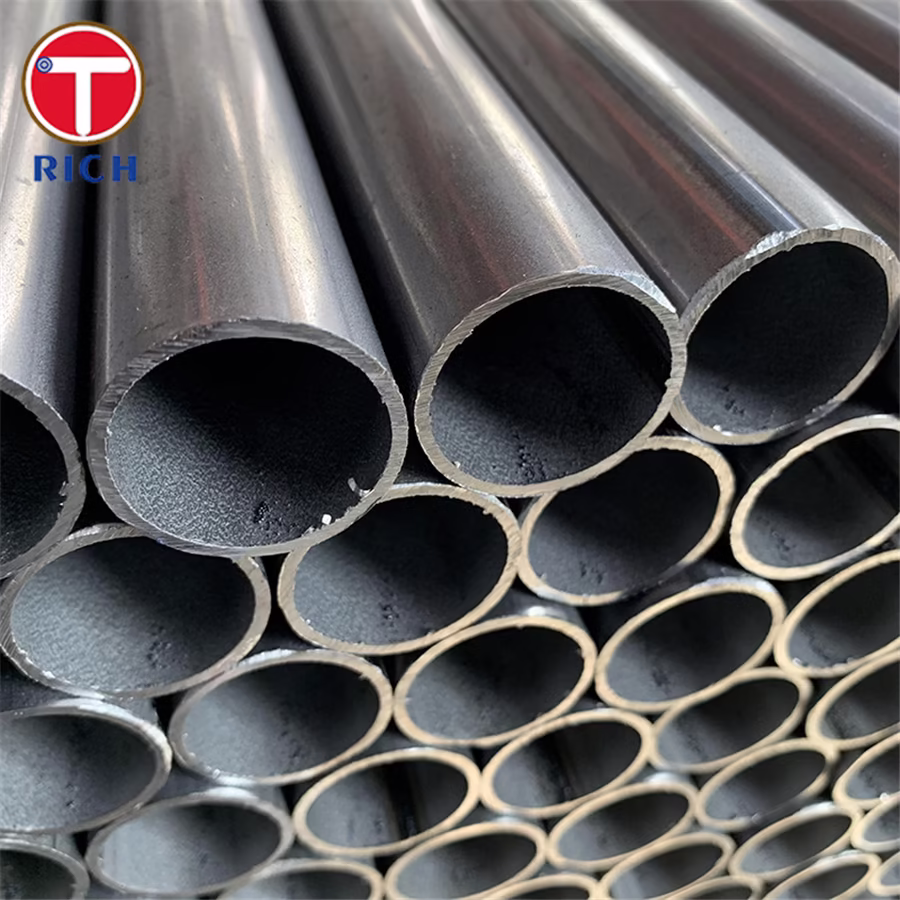

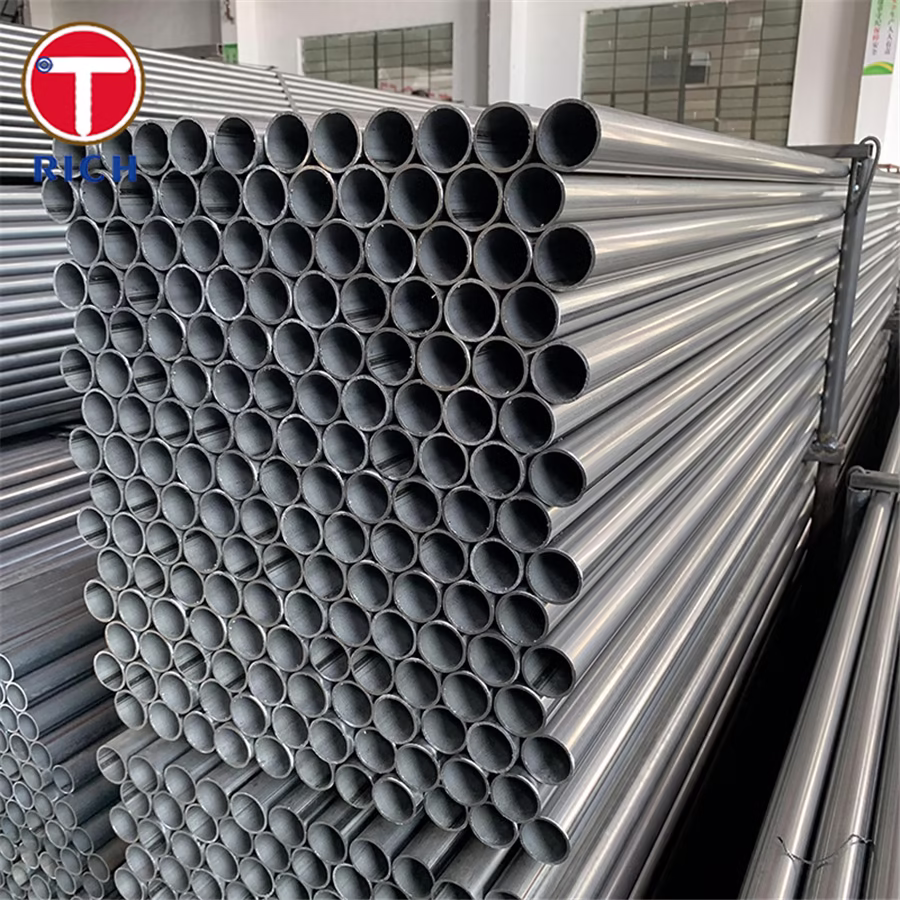

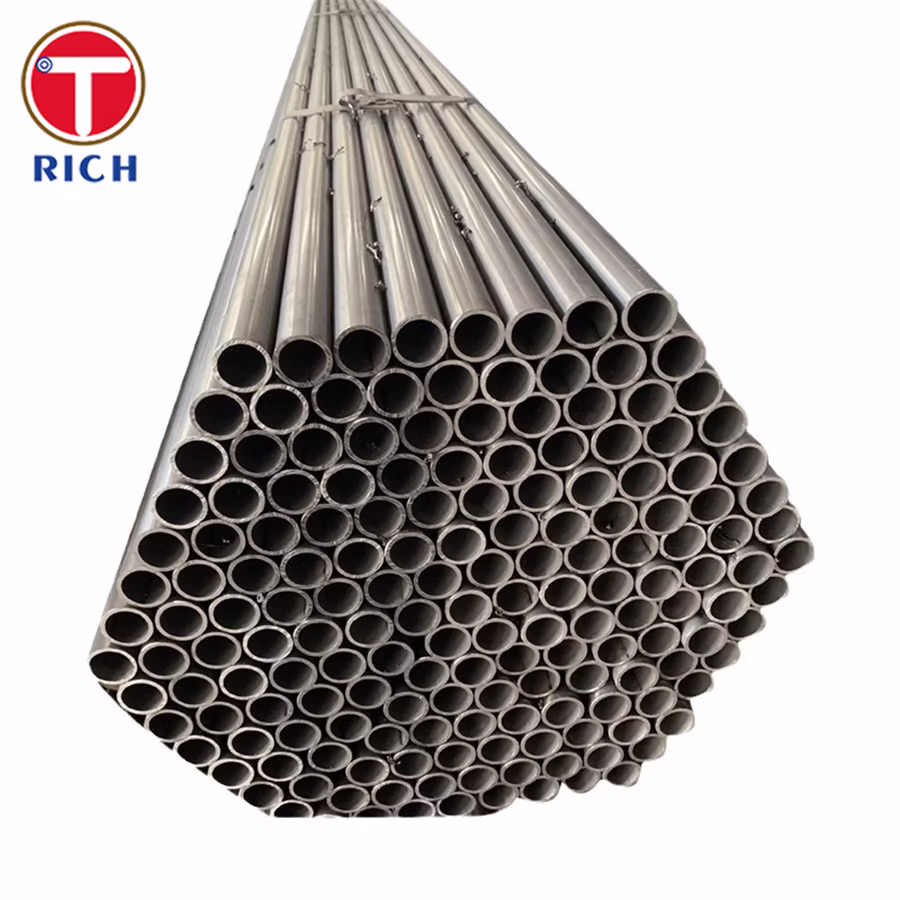

Electric Resistance Welded Pipe ASTM A214

ASTM A214 tubes are electric-resistance-welded carbon steel pipes used in heat exchangers and condensers for low-pressure applications. Available in Grades C, 1, and 2, they offer moderate corrosion resistance and cost-effectiveness. Key properties include a tensile strength of 310 MPa and a yield strength of 180 MPa. Alternatives like ASTM A179 and A192 provide options for varying requirements.

Description

ASTM A214 Grade C, Grade 1, Grade 2 Electric Resistance Welded Pipe

Material Specification

ASTM A214 Electric Resistance Welded Pipe is a standard specification for electric-resistance-welded carbon steel tubes used for heat exchangers, condensers, and similar heat transfer apparatus. These tubes are designed for use in applications where the temperature and pressure are relatively low.

Key Features

  • Manufacturing Process: Electric Resistance Welded (ERW)
  • Applications: Primarily used in heat exchangers and condensers
  • Grades: Includes Grade C, Grade 1, and Grade 2
  • Corrosion Resistance: Moderate, suitable for low-pressure applications
  • Cost-Effective: Generally more economical than seamless tubes

Chemical Composition

The chemical composition of ASTM A214 Electric Resistance Welded Pipe is crucial for ensuring the desired mechanical properties and performance. Below is a table presenting the typical chemical composition for these grades:

Element Grade C (%) Grade 1 (%) Grade 2 (%)
Carbon (C) 0.18 max 0.18 max 0.18 max
Manganese (Mn) 0.27-0.63 0.27-0.63 0.27-0.63
Phosphorus (P) 0.035 max 0.035 max 0.035 max
Sulfur (S) 0.035 max 0.035 max 0.035 max

Mechanical Properties

The mechanical properties of ASTM A214 Electric Resistance Welded Pipe are essential for determining their suitability for specific applications. Below is a table summarizing the mechanical properties:

Property Grade C Grade 1 Grade 2
Tensile Strength (MPa) 310 min 310 min 310 min
Yield Strength (MPa) 180 min 180 min 180 min
Elongation (%) 35 min 35 min 35 min

Steel Grade

ASTM A214 Electric Resistance Welded Pipe are available in different grades, each designed to meet specific requirements. The grades primarily differ in their mechanical properties and chemical composition, allowing for a range of applications.

Application

ASTM A214 Electric Resistance Welded Pipe are widely used in:

  • Heat exchangers
  • Condensers
  • Low-pressure applications
  • Industrial boilers

These tubes are particularly suitable for applications where the operating conditions do not involve high pressure or temperature.

Possible Alternative Grades

While ASTM A214 is a popular choice for specific applications, there are alternative grades that might be considered depending on the requirements:

  • ASTM A179: Seamless cold-drawn low-carbon steel heat-exchanger and condenser tubes.
  • ASTM A192: Seamless carbon steel boiler tubes for high-pressure service.
  • ASTM A210: Seamless medium-carbon steel boiler and superheater tubes.

Additional information

Application

Condenser, Heat Exchanger

Material

Carbon Steel

Steel Grade

Grade 1, Grade 2, Grade C

Technique

EFW, ERW, Galvanized, LSAW

Tolerance

±1%

Outer Diameter

25-426mm

Wall Thickness

0.5-100mm

Shape

Customer Requirements, Rectangular, Round, Square

OEM

Allow

MOQ

1 Ton

Sample

Allow

Processing Services

Bending, Customers's Requirement, Cutting, Decoiling, Moulding, Punching, Welding

Packing

Customer Requirements, Nylon Braided Tape, Wooden Box

Payment Method

D/A, D/P, L/C, MoneyGram, T/T, Western Union

Custom Made

LOGO, Package, Spray Label

Certification

API, BSI, CE, ISO14001, ISO9001, ROHS, TS16949

Secondary Or Not

Non-secondary
