Description

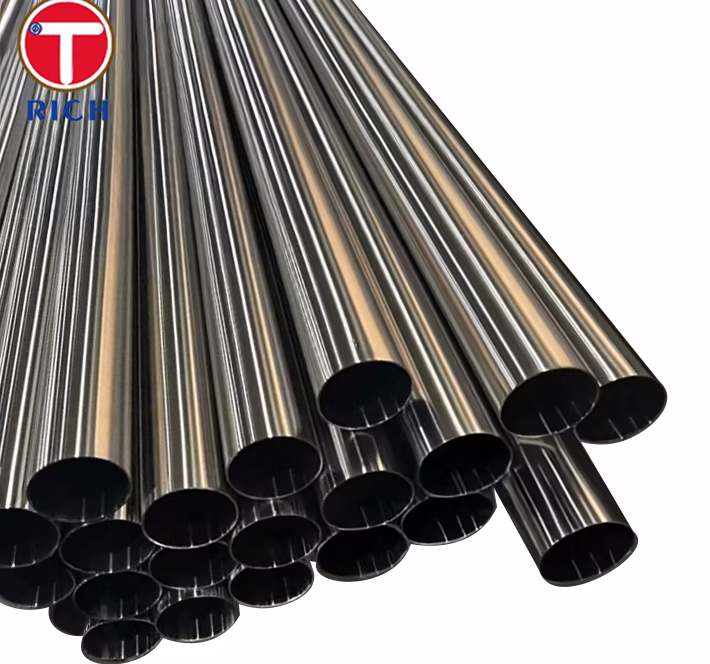

Stainless Steel Seamless Tube ASTM A213
Material and Specification
Stainless Steel Seamless Tube ASTM A213 are high-quality tubes made from stainless steel, which conform to the specifications set by the American Society for Testing and Materials (ASTM). These tubes are designed for seamless applications, ensuring a smooth and reliable flow of fluids or gases. The ASTM A213 standard specifies the requirements for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
Key Features
The key features of Stainless Steel Seamless Tubes ASTM A213 include:
- Corrosion Resistance: Stainless steel is known for its excellent corrosion resistance, making these tubes suitable for various applications in corrosive environments.
- High Strength: These tubes exhibit high strength and toughness, ensuring their durability and reliability in demanding conditions.
- Seamless Construction: The seamless design of these tubes eliminates the risk of leakage and enhances their overall performance.
- Wide Temperature Range: Stainless Steel Seamless Tubes ASTM A213 can withstand a wide range of temperatures, making them suitable for both high-temperature and low-temperature applications.
- Versatility: These tubes can be used in various industries, including oil and gas, chemical, petrochemical, power generation, and more.
Chemical Composition
The chemical composition of Stainless Steel Seamless Tubes ASTM A213 may vary depending on the specific grade. The table below presents a general overview of the chemical composition for some common grades:
| Element | Grade 304 (%) | Grade 316 (%) | Grade 321 (%) |
|---|---|---|---|
| Carbon (C) | 0.08 max | 0.08 max | 0.08 max |
| Manganese (Mn) | 2.00 max | 2.00 max | 2.00 max |
| Phosphorus (P) | 0.045 max | 0.045 max | 0.045 max |
| Sulfur (S) | 0.030 max | 0.030 max | 0.030 max |
| Silicon (Si) | 0.75 max | 0.75 max | 0.75 max |
| Chromium (Cr) | 18.0-20.0 | 16.0-18.0 | 17.0-19.0 |
| Nickel (Ni) | 8.0-10.5 | 10.0-14.0 | 9.0-12.0 |
Please note that this table is not exhaustive and other grades may have different chemical compositions.
Mechanical Properties
The mechanical properties of Stainless Steel Seamless Tubes ASTM A213 are crucial for determining their suitability for specific applications. The table below provides an overview of the typical mechanical properties for some common grades:
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| 304 | 515 min | 205 min | 35 min |
| 316 | 515 min | 205 min | 35 min |
| 321 | 515 min | 205 min | 35 min |
These values are indicative and may vary depending on the specific manufacturing process and heat treatment.
Steel Grade
Stainless Steel Seamless Tubes ASTM A213 are available in various steel grades, including but not limited to:
- Grade 304
- Grade 316
- Grade 321
These grades offer different properties and are suitable for various applications based on their corrosion resistance, strength, and temperature resistance.
Application
Stainless Steel Seamless Tubes ASTM A213 find applications in a wide range of industries, including:
- Oil and Gas: These tubes are used in oil and gas exploration, production, and refining processes due to their corrosion resistance and high strength.
- Chemical and Petrochemical: They are utilized in chemical and petrochemical plants for transporting corrosive fluids and gases.
- Power Generation: Stainless Steel Seamless Tubes ASTM A213 are employed in power plants for heat exchangers, boilers, and superheaters due to their ability to withstand high temperatures and pressures.
- Food and Beverage: These tubes are suitable for applications in the food and beverage industry, where hygiene and corrosion resistance are essential.
- Pharmaceutical: They are used in pharmaceutical manufacturing processes that require sterile and corrosion-resistant equipment.
Possible Alternative Grades
While Stainless Steel Seamless Tubes ASTM A213 offer excellent performance, there are alternative grades available in the market that may suit specific requirements. Some possible alternative grades include:
- Duplex Stainless Steel (e.g., SAF 2205)
- Super Duplex Stainless Steel (e.g., SAF 2507)
- Nickel Alloys (e.g., Inconel 625, Hastelloy C276)
